  1. Leetcode
  2. Tree

Populating Next Right Pointers in Each Node II

ID: 117

PreviousRestore Binary TreeNextSubtree of Another Tree

Last updated 3 years ago

Given a binary tree

struct Node {
  int val;
  Node *left;
  Node *right;
  Node *next;
}

Populate each next pointer to point to its next right node. If there is no next right node, the next pointer should be set to NULL.

Initially, all next pointers are set to NULL.

Input: root = [1,2,3,4,5,null,7]
Output: [1,#,2,3,#,4,5,7,#]

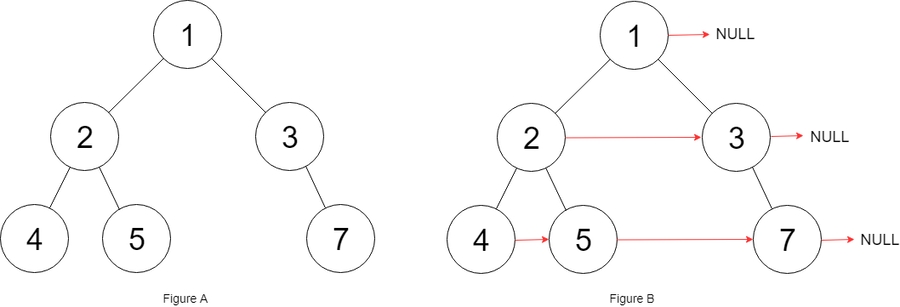

Explanation: Given the above binary tree (Figure A),
your function should populate each next pointer to point to its
next right node, just like in Figure B. The serialized output is in
level order as connected by the next pointers,
with '#' signifying the end of each level.

Idea

BFS

BFS on each level of the tree, keep track of previous node and if the previous node is not the last one of the level, set the current node as the next element of the previous node

Not best time efficient, but enhance on BFS

Code

public Node connect(Node root) {
    if(root==null){
        return null;
    }
    Queue<Node> q = new LinkedList<>();
    q.offer(root);
    while(!q.isEmpty()){
       int size = q.size();
        Node prev = q.poll();
        size--;
        while(size-- >0){
            Node curr = q.poll();
            prev.next = curr;
            if(prev.left!=null){
                q.offer(prev.left);
            }
            if(prev.right!=null){
                q.offer(prev.right);
            }
            prev = curr;
    }
        if(prev.left!=null){
            q.offer(prev.left);
        }
        if(prev.right!=null){
            q.offer(prev.right);
        }
    }
    return root;
}
